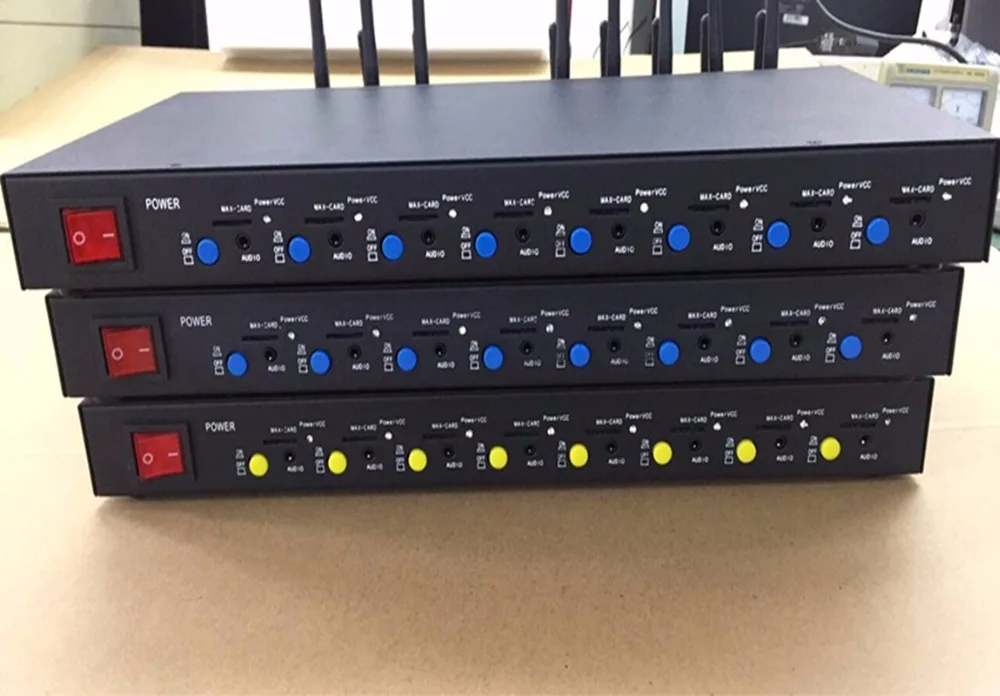

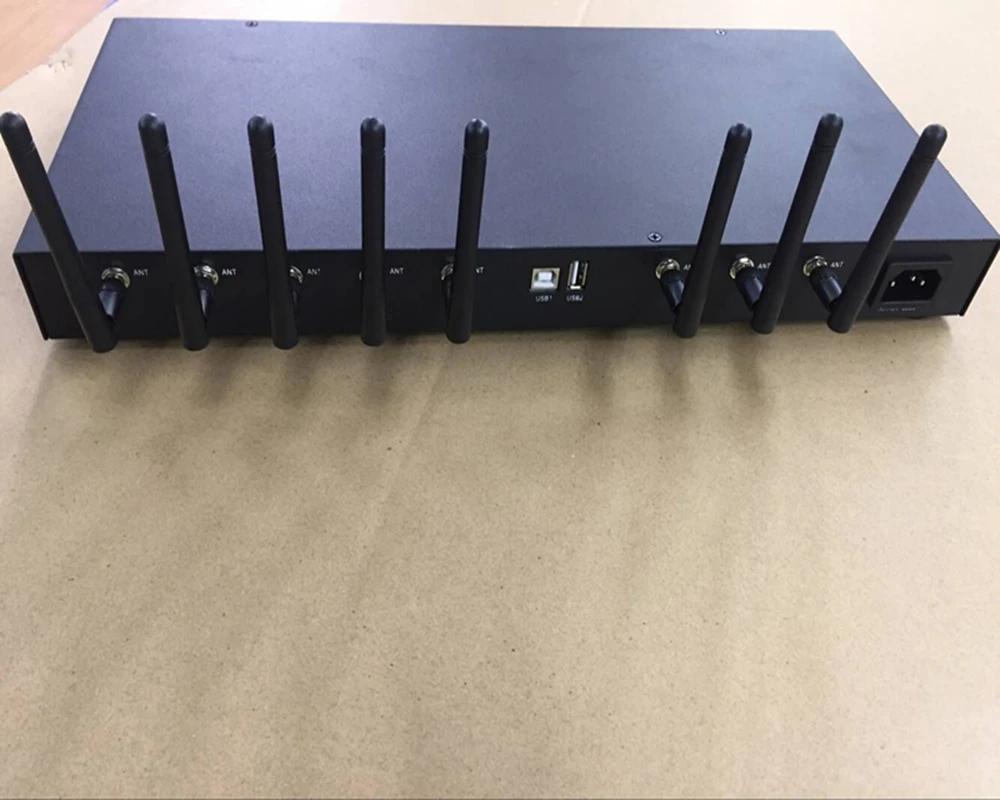

♦Just like 8 single-channel equipments work at the same time ♦Insert 8 SIM cards(small) ♦Connection with the computer through a data line be integrated with USB port. ♦Each channel with separate power switch ♦Industrial chassis, elegant shell ♦4G FDD-LTE:B2/B4/B5/B17 ♦3G frequency:850/1900 mhz ♦8 x SIM card(small) slots ♦Wireless access to internet ♦Comply with EDGE CLASS12 WCDMA 3GPP RELEASE 99 ♦USB 2.0 interface ♦Send and receive English SMS in bulk Basic Features ♦ Asynchronous, transparent or non-transparent, to a maximum 14400 bits/s ♦ Baud Rate : 300-115200 bits / s ♦Automatic baud rate: from 2400 to 19200 bits /s ♦V.42, V.42bis ♦GPRS compatible ♦WAP compatible ♦SMA Antenna Interface ♦SIM Card Outlet ♦Power connector ♦Control via AT command Application ♦ Large shopping malls, supermarkets | ♦ Professional market, large wholesalers | ♦ Large hotels,large-scale entertainment | ♦ Large agencies | ♦ Transport, logistics industry | ♦ Large enterprises, and institutions | ♦ Large hospitals, large bookstore | ♦ Newspaper, television and radio stations | ♦ Oil Company ( other chain business model) | ♦ Government agencies or large township Hardware Feature ♦ Meet the ETSI GSM 2 + standards | ♦ Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz) | ♦110 -240 VDC power supply | ♦Operating Temperature: -20 ° C - + 55 ° C | ♦Storage temperature: -25 ° C - + 70 ° C | Supported operating systems Windows(XP,VISTA,7,8,10) Linux 3.6 x and newer Lmix 2.6.18 and newer Android Mac OS X Built in module features: General features • SIM7100A: - Five-Band FDD-LTE B1/B3/B7/B8/B20 - Dual-Band UMTS/HSPA+ 900/2100MHz • Control via AT command • Operation temperature:- -40℃ to +85℃ Specifications for Data transfer • LTE Uplink up to 50 Mbps Downlink up to 100 Mbps • HSPA+ - Max. 42 Mbps(DL), Max.5.76Mbps(UL) • UMTS - Uplink/Downlink up to 384 Kbps • CSD -WCDMA data rate 57.6 Kbps Specifications for SMS• Point to point MO and MT • Text and PDU mode Certifications SIM7100A • FCC • PTCRB • REACH • ROHS • ATI(ongoing) Packing contents: SIM7100A 8 PORTS MODEM POWER PLUG USB 2.0 CABLE ANTENNA USB DRIVER CD DISK MODEM PICTURE
BULK SMS SOFTWARECompose easily to groups or all contacts in your contact list.
Contact list management - Manage subscribed and unsubscribed phone number.
Received SMS at Inbox. New messages are shown in bold.
Outbox showing messages to be sent.
Let you select which COM port to use. Information of the phone is shown if connected successfully.
List of already sent messages. Each column can be sorted by clicking the header.
Reply to inbox message.
|
|

|
